Schott EasyLED Illumination Options: Precision Lighting for Advanced Microscopy

Schott’s EasyLED series provides robust, energy-efficient LED illumination solutions for stereo microscopy, featuring specialized variants tailored to diverse applications. Designed for seamless integration and maintenance-free operation, these systems replace traditional fiber-optic illuminators with superior performance.

Key options include:

Ring Lights

  • Standard Ring Light: Delivers homogeneous, shadow-free illumination (90 klux) via a durable anodized metal housing and integrated heat sink.
  • Ring Light Plus: Enhances contrast with eight controllable LED segments and an intuitive “jog dial” for rotating segments or switching modes (e.g. partial/full ring). Boasts 140 klux brightness and fits 66 mm objectives (adapters for 58/60 mm available).
  • Applications: Ideal for highly reflective specimens or demanding industrial environments.

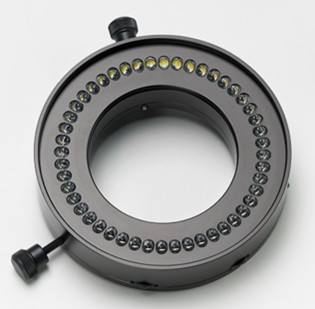

Schott Ring Lights
Back Lights

  • Features SCHOTT Opalika® glass for flawless homogeneity and scratch resistance.
  • Provides uniform illumination (12,000 cd/m²) across a 50 mm diameter area, with continuous dimming (0–100%).
  • Design: Compact controller integrated into the head; compatible with microscope stands (84–180 mm diameter).
  • Applications: Optimized for transparent specimens in quality control or life sciences.

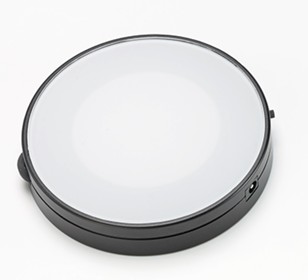

Schott Back Lights
Spot Lights

  • Spot Light Plus Single: One adjustable head emitting 130–140 lm.
  • Spot Light Plus Double: Two independently controlled heads with alternating switching and cooling lamellae to prevent specimen heating. Mounts via goosenecks on posts (20–35 mm) or standalone bases.
  • Advantages: Ergonomic dimming near microscope focus controls; robust metal housing.
  • Applications: Detailed macro analysis requiring directional or shadow-contrast lighting.
Schott Spot Lights
Accessories

  • Optical: Polarization filters (high extinction ratio), color filters (red/blue/green/yellow), and diffusers to eliminate LED reflections.
  • Mechanical: Mounting brackets for diverse stands, BOROFLOAT® glass shields for harsh environments, and tubular diffusers for reflective objects.

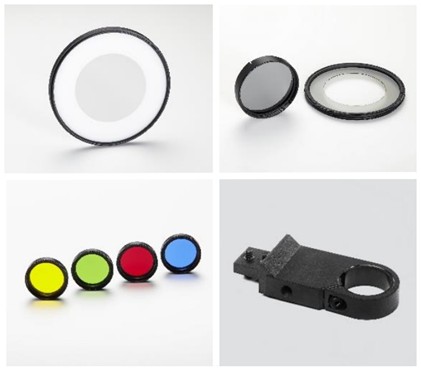

Schott Accessories
Shared Advantages Across All Options

  • 50,000-hour LED lifespan with consistent daylight color temperature (5600 K).

  • Integrated controllers for dimming and mode switching; no external boxes needed for ring/back lights.

  • Global compatibility: 100–240 V power supplies, CE-certified, and adaptable to OEM microscopes (Leica, Zeiss, etc.).

  • Rugged construction: Anodized metal housings for industrial or lab use.

Table: Schott EasyLED Key Specifications

Options Brightness Special Features Mounting Flexibility
Ring Light Plus 140 klux @ 65 nm WD 8-segment control, jog dial 66mm ID (58/60 mm adapters)
Back Light 12,000 cd/m2 Opalika glass, 0-100% dimmer Fits dia 84 -180 mm stands
Spot Light Double 130 lm/spot Dual head switching, cooling lamellae Post (20 – 35 mm) or standalone



Schott’s EasyLED series merges precision engineering with user-centric design, offering scalable illumination for research, industrial inspection and education. Its modularity ensures adaptability, while high-efficiency LEDs reduce long-term costs.

In addition to Ring Lights, Spot Lights and Back Lights, Schott also developed state of the art diffuser lights. Click here for more analysis of Schott’s Light Diffuser vs Ring Lights and Dome Lights.

Schott Brochures

Check out available brochures of all Schott Lighting and Imaging Products.
